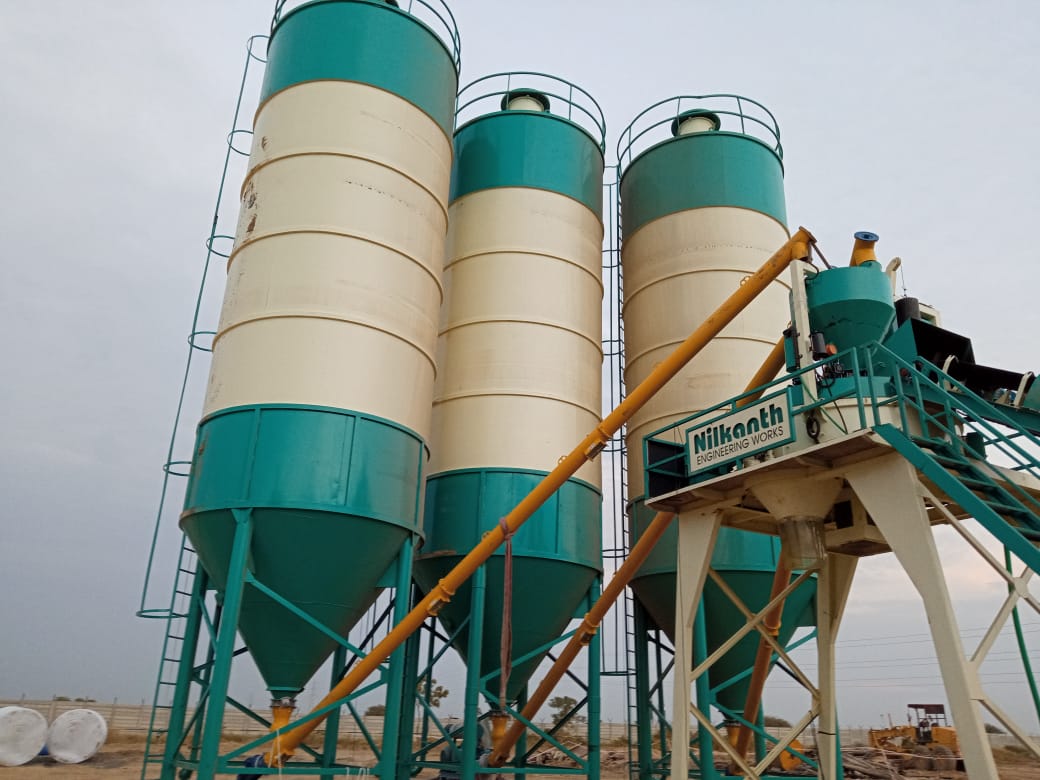

CEMENT/FLYASH STORAGE SILO

CEMENT/FLYASH STORAGE SILO NE 40/60/80/100 MT

We are leading manufacturer and supplier of Cement silo or Fly Ash Silo from 40 Tones to 100 Tones that are in line with the highest quality standards prescribed by the industry. We are offering Storage Silos to our clients which are mainly a part of the concrete industry use at RMC Plant. Which are fabricates from superior quality of Mild Steel. This cement or fly ass silo is highly durable and at competitively priced. We can also manufacture that silo as per the specific requirements of our clients

INQUIRE NOW

CEMENT/FLYASH STORAGE SILO NE 40/60/80/100 MT HIGHLIGHTS

cement-flyash/2

Nilkanth Cement/Fly Ash Silo, which reflect Nilkanth’ s manufacturing culture based on high technology and experience since 1982, provides the following advantages to its users:

  • Diameter of Silo: 2500/2800/3400/4000 mm.
  • Thickness of plate: Shell 5 mm and bottom cone 6 MM and Top cone 5mm.
  • 4/6 legs each is 200 NB or ISMB 200.
  • Railing, Cage Ladder, Manhole on Top of Silo Included in Scope of Supply.
  • Cement Feeding Pipe Dia. 4” up to Foundation to Top Level.

CEMENT/FLYASH STORAGE SILO NE 40/60/80/100 MT TECHNICAL SPECIFICATIONS

DESCRIPTION SILO 40 MT SILO 60 MT SILO 80 MT SILO 100 MT
Storage Cap. 40 Ton 60 Ton 80 Ton 100 Ton
Material Mild Steel Mild Steel Mild Steel Mild Steel
Shell Plate 5mm 5mm 5mm 5m
Bottom plate 5mm 5mm 6mm 6mm
Leg Pipe 220 dia X 3 mm 220 dia X 4 mm 220 dia X 5mm 220 dia X 5mm
Dia of silo 3000mm 3500mm 3500mm 3500mm
Height of silo 5500mm 800mm 12800mm 12800mm
Discharge height 2000mm 2000mm 2000mm 2000mm
Top man hole Provided Provided Provided Provided
Ladder & Railing Provided Provided Provided Provided
9-cement-silos
cement-flyash/3
CEMENT SILO ACCESSORIES LIST AS BELOW
Top Air filter.
Butter fly valve (Manual)
Safety valve "
Flexible rubber hose 5 Mtr. With Flange
Bulker unloading system (Cement pump 50 HP) with
Flexible rubber hose 5 Mtr. With Flange
Screw conveyor 219dia X 10 M Length with 12 HP Motor.

FAQ

our machines are manufactured strictly according to national and intentional standards, and we take a test one each equipment before delivery. Nilkanth Engineering works, features quality in concrete batching plants. With an experience of over 35 years, Nilkanth has always kept quality as priority over money, At Nilkanth, We understand that quality of your concrete depends on the quality of your concrete batching plant .For Nilkanth Quality is more than a word. It’s a promise

Our Company is extending the trade scale at present.We have clients all over world, such as Russia,Oman,Uganda,Iraq,Zambia,Congo,Nigeria,And won the trust of the customers with good reputation. Nilkanth Engineering Works is well-known for their customer relationship and serves their client with utmost satisfaction all over the globe. Our sales after best service are our motto and due to this we have got good reputation in market and get repeat order from same party.

Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. Nilkanth’ s service team is known for its quick resolutions of onsite service requirements , with majority of the resolutions provided for onsite equipment on phone or remote video support itself , In cases where it's not resolved on off-site support service, our service engineers will be at your site within minimum time and resolve your problem as soon as possible.

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Nilkanth Engineering Works regularly Organized Operator Training Program Offline and Online Platform. All Operator came from all over India. During the whole day of program Nilkanth’ s Team one by one explained all about Panel Wiring, Control, Wiring, Power Wiring, Load cell Wiring, Limit Switch, Module Wiring etc. Also explained about how to operate Nilkanth’ s Plant , Our Engineer Mr. Mohak Barot has given brief details about control panel to all operators and also explained each function of SCADA SYSTEM. We had set up Control Panel with our concrete batching plant and given a live demo of the control panel. From this Operator Training Program all operator can gain new knowledge and experience.

Yes, Nilkanth engineering works Using high quality standard parts and accessories of guaranteed quality, which keeps concrete batch plants moving even under the toughest conditions for many years, The high level of reliability and safety of the products is confirmed by Nilkanth’ s Quality assessment Team.

for our 35 years of good work and support to their business consistently ,We now generate Proforma Invoice for spares parts within 30 minutes as per requirements, with the conformation we dispatched spare parts from our manufacturing unit same day to save your valuable time.

Our Engineer will send Installation Drawing before we send the machine , and our engineer will come one's machine reaches at your site than with the help of your 3-4 Helpers and 1 or 2 Hydra Crane, our Engineer will fully set up plant within 24 - 48 Hours and make it working.

Yes, We do. We can Customized different product according to our customer requirement .

We are factory and be able to give you the Best price. and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer.

We usually accept RTGS/NEFT/TT & DO From Bank .40% in advance as down payment, the balance before delivery We take pictures or video of finished products before delivery.

Yes, we have.

After Receiving Advance Payment. Generally it is 3-7 Days if machine in stock. Or it is 7-15 days if the machine are not in stock
